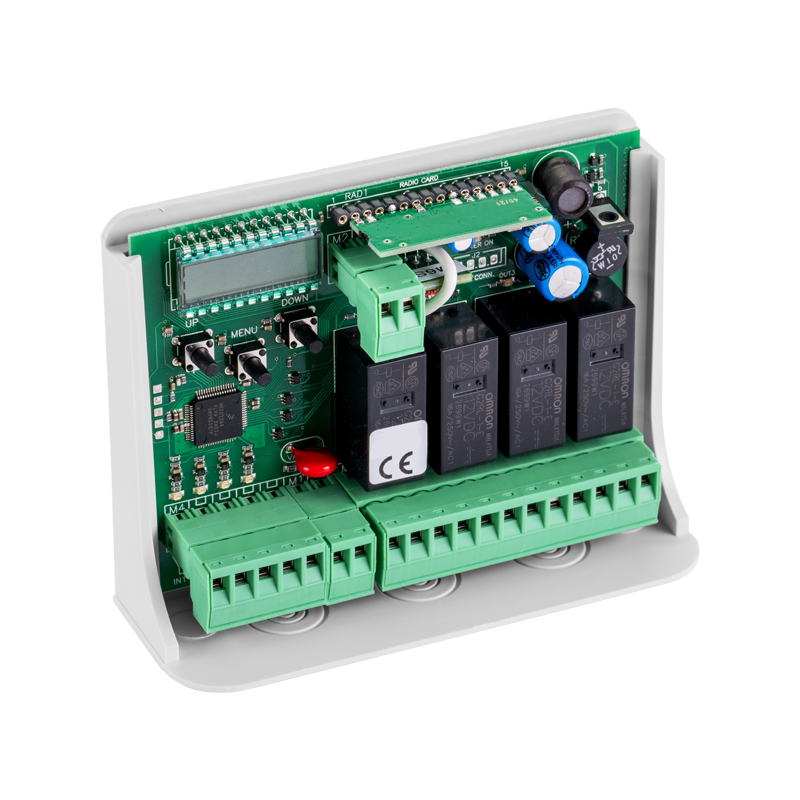

B.RO X40 Display Rolling Code Receiver

High-performance 4-channel Rolling Code receiver designed for secure and efficient remote control systems.

This versatile receiver supports both 12-24 Vdc/Vac power supply with automatic voltage selection and offers a compact, durable design (116x90x42mm) with a protective box. Optimize your remote control systems with the B.RO X40 DISPLAY, offering a perfect blend of security, flexibility, and control.

Technical features

Code

12005756

Frequency

433,92 MHz

Range

80 m [...] 250 m (*) Depending on the transmitter, the aerial and the interferences on the field

Coding

Rolling code

Movable part name

Fix part name

Frequency

Power supply movable part

Power supply fix part

Battery life

Compatible safety edges

Max distance betwenn devices

Max intervention time

R.CO.O radio memory storage

Input power supply

Power supply (TX wireless)

Nominal range

Horizontal adjustment angle

Vertical adjustment angle

Absorption

Relay contact

Obstacle detection time

Synchronized mode

Modulation frequency

Master code

Slave code

Standard operator⁰

Standard with 1 mechanical stop¹

Standard with 2 mechanical stops²

Power supply

12 / 24 Vdc / Vac

Motor power supply

Motor absorption

Maximum gate weight

Average absorption

Maximum gate weight/lenght

Dimensions

Weight

Capacitor

Speed

Maximum stem stroke

Maximum thrust

Opening time

Maximum thrust

Max speed (adjustable)

Boom maximum lenght

Chain maximum lenght

Height of the pillar

Boom diameter

Service

Daily cycles recommended

Guaranteed consecutive cycles

Working temperature

-10°C [...]+55°C

Degree of protection

Optional accessories

Code movable part in watertight box

Code fix part in watertight box

Integrated led board

Tested on (cycles)

Control unit

Instructions

B.RO X40 Display Rolling Code Receiver | EN manual

B.RO X40 Display Rolling Code Receiver | IT manual

Product info

Key features of the B.RO X40 DISPLAY Rolling Code receiver:

433Mhz Rolling Code compatibility with all Allmatic remotes for enhanced security.
Supports up to 1000 transmitters with dedicated memory.
User-friendly display interface and 3 intuitive keys for easy operation.
Equipped with 4 relay outputs (16A at 230 Vac) with customizable functions for each transmitter key or wired input:
- Immediate
- Step-by-step
- Time-controlled
- Time-controlled with delay
4 wired inputs, one for each relay, offering flexible control options.
Password-protected menu to secure settings.
Advanced transmitter management:
- Insert transmitters into memory with ease.
- Enable, disable, or modify transmitter functions.
- Customize each key’s behavior and delete individual transmitters.
