Range of motor control units with scalar control Speed / Frequency that allows a fine speed and torque setting for two-phase and three-phase motors, without using the start capacitor. Cruising speed increase (up to 100Hz) and torque optimisation at low speed
(slowed down phases), acceleration and deceleration ramps, electronic limitation of the current absorbed by the motor, electronic brake or external electro-brake (optional). Digital logic with LCD Display combined with an easy and complete multilingual
menu. Possibility to configure the card according to the needs of the installer and of the type of automation. Simplified stroke programming, adjustable motor speed, managing of a position encoder (if required by the motorisation). It integrates on-board all the necessary for a complete and simplified installation, with 230 Vac flashing light, 230 Vac courtesy light, 24Vac / Vdc accessory alimentation.
Code
Frequency
Range
Coding
Movable part name
Fix part name
Frequency
Power supply movable part
Power supply fix part
Battery life
Compatible safety edges
Max distance betwenn devices
Max intervention time
R.CO.O radio memory storage
Input power supply
Power supply (TX wireless)
Nominal range
Horizontal adjustment angle
Vertical adjustment angle
Absorption
Relay contact
Obstacle detection time
Synchronized mode
Modulation frequency
Master code
Slave code
Standard operator0
Standard with 1 mechanical stop1
Standard with 2 mechanical stops2
Power supply
Motor power supply
Motor absorption
Maximum gate weight
Average absorption
Maximum gate weight/lenght
Dimensions
Weight
Capacitor
Speed
Maximum stem stroke
Maximum thrust
Opening time
Maximum thrust
Max speed (adjustable)
Boom maximum lenght
Chain maximum lenght
Height of the pillar
Boom diameter
Service
Daily cycles recommended
Guaranteed consecutive cycles
Working temperature
Degree of protection
Optional accessories
Code movable part in watertight box
Code fix part in watertight box
Integrated led board
Tested on (cycles)
Control unit

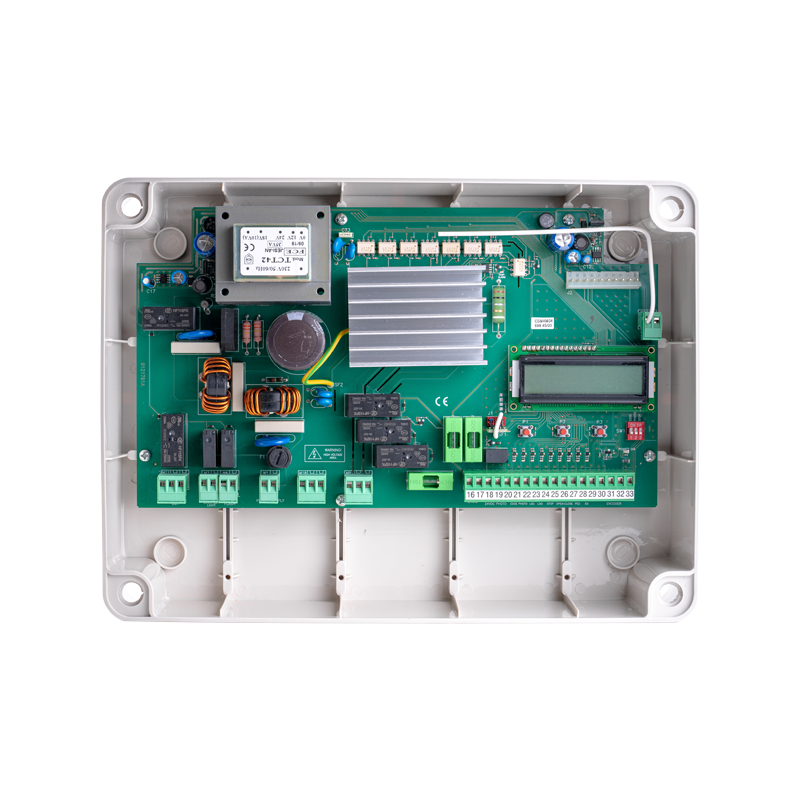

CT INVERTER 230 Vac XLINE SINGLE PHASE
Control board for the operating and controlling of industrial automations equipped with one SINGLE PHASE MOTOR 230 Vac 50Hz 1,5KW WITHOUT START capacitor. Impact sensor function with variable sensitivity (only version with Encoder and during the movement at cruising speed), current electronically limited at 10A, wide backlit display with 2 lines 16 characters and 3 buttons for the adjustment of all the parameters.
Inputs: open, close, step-by-step, pedestrian, stop, photocell, safety edge, open and close limit switches, led inputs status.
Outputs: integrated flashing circuit 230 Vac, courtesy light, accessories power supply 24 Vav/ dc, receiver radio module
SINGLE PHASE Simple box – ID Product: 12006565
SINGLE PHASE Box with Open Stop Close buttons – ID Product: 12006569
Optional radio raceiver – ID Product: 12006471
