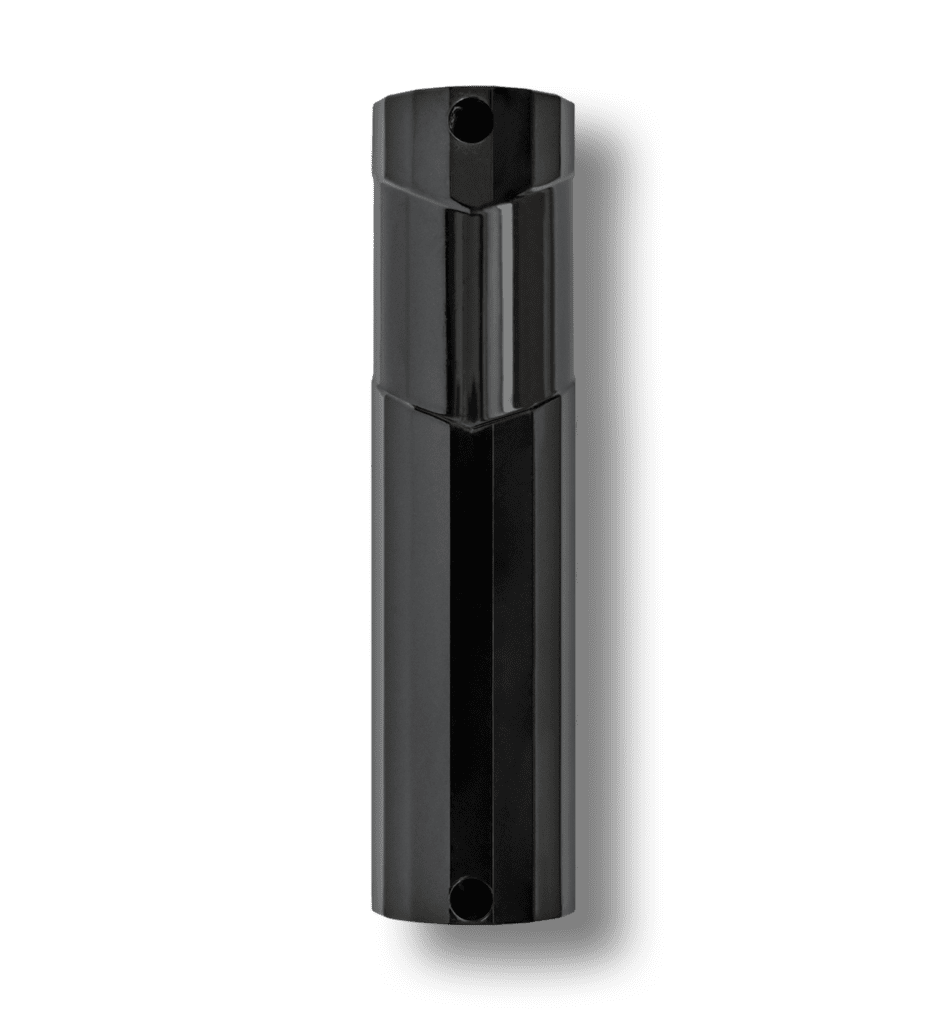

Iris Bat ADV

Latest Generation Adjustable Photocells

The IRIS adjustable photocells allow you to detect obstacles on the optical axis between transmitter (TX) and receiver (RX) with a range of up to 30 m.

At the forefront: The Fresnel type high performance optic is easily adjustable on frictioned and self-locking joints both horizontally, being able to rotate 180° (± 90 °), or vertically with a possible rotation of ± 10°. The optic is completely independent of the electronic board, this greatly facilitates the orientation when the wiring is already performed.

Technical features

Code

12005914

Frequency

Range

Coding

Movable part name

Fix part name

Frequency

Power supply movable part

Power supply fix part

Battery life

Compatible safety edges

Max distance betwenn devices

Max intervention time

R.CO.O radio memory storage

Input power supply

10...30 Vac (RX) - 10...35 Vdc (RX)

Power supply (TX wireless)

10...30 Vac (RX) - 10...35 Vdc (RX)

Nominal range

14m

Horizontal adjustment angle

-90°...+90°

Vertical adjustment angle

-10°...+10°

Absorption

RX 69 mA (12Vac) / 69 mA (24Vac) / 32 mA (12Vdc) / 24mA (24 Vdc)
TX battery life 2 years

Relay contact

1A 24 Vdc

Obstacle detection time

102.5 ms

Synchronized mode

Modulation frequency

100 kHz

Master code

Slave code

Standard operator⁰

Standard with 1 mechanical stop¹

Standard with 2 mechanical stops²

Power supply

Motor power supply

Motor absorption

Maximum gate weight

Average absorption

Maximum gate weight/lenght

Dimensions

Weight

Capacitor

Speed

Maximum stem stroke

Maximum thrust

Opening time

Maximum thrust

Max speed (adjustable)

Boom maximum lenght

Chain maximum lenght

Height of the pillar

Boom diameter

Service

Daily cycles recommended

Guaranteed consecutive cycles

Working temperature

-10...+55 °C

Degree of protection

IP54

Optional accessories

Code movable part in watertight box

Code fix part in watertight box

Integrated led board

Tested on (cycles)

Control unit

Instructions

Iris Bat ADV | EN manual

Iris Bat ADV | IT manual

Product info

Exclusive Structure and Extremely Compact Dimensions. Body Resistant to Atmospheric Events and Designed for Any Type of Installation

Double relay equipment with series exchanges, the NC contact and the photo test function make it conform to the standards of category 3 of UNI EN ISO13849-1 (update of EN 954-1). Possibility to connect up to 8 pairs of photocells by synchronizing the transmission (multiplexed system) without interference. The selection is made by 4-way dip-switches placed both on the transmitter and on the receiver.

IR transmission with advanced digital protocol that guarantees maximum efficiency, disturbance immunity and reduced consumption. Reinforced power supply to tolerate voltages up to 35Vdc or 30Vac.
